Technical Information
|
|
Product Standard TS EN 817 (Single Control) |
|
Manufacturer Warranty 6 Years (Painted And Coated Products For 2 Years) |
|

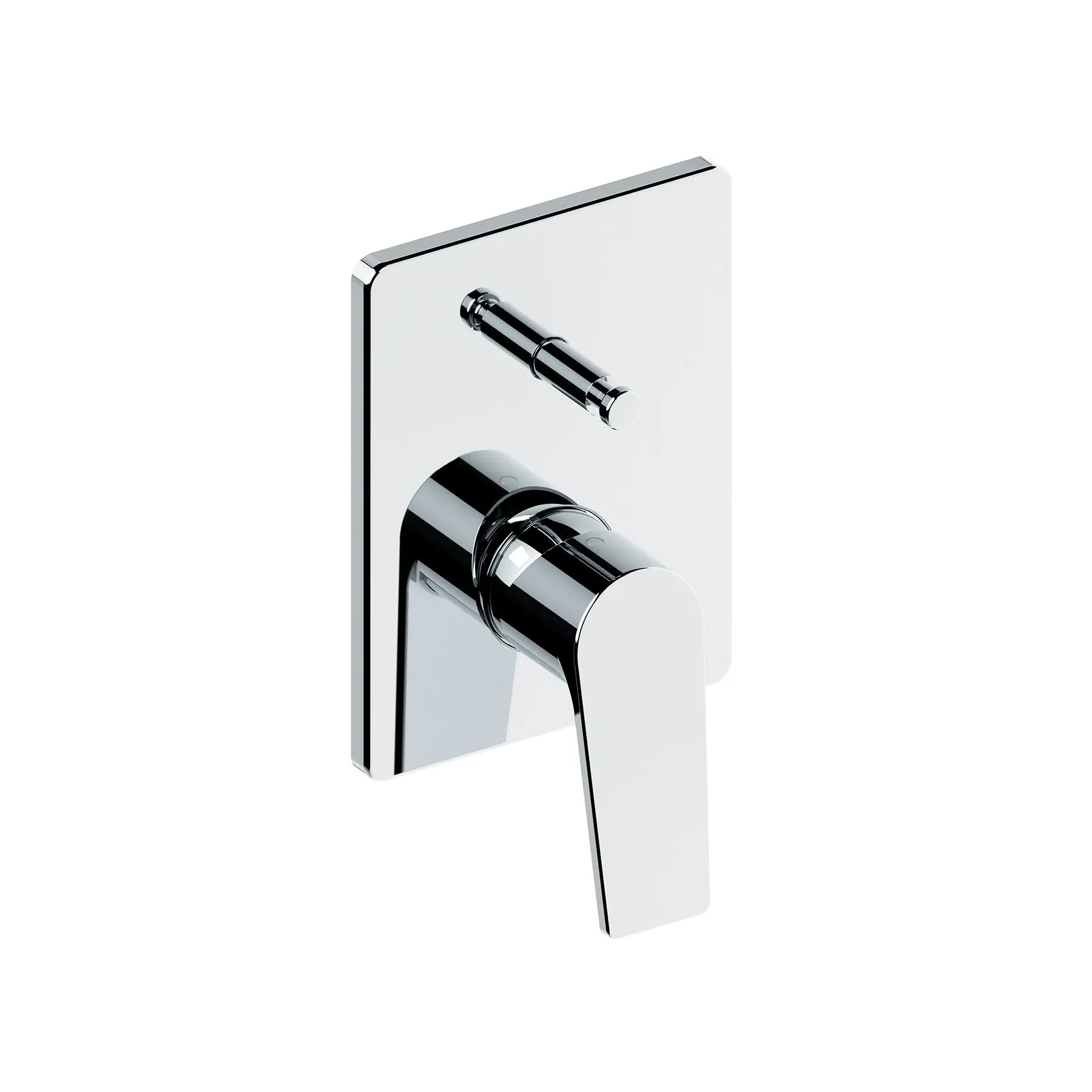

Color / Finish Chrome |
|
Aearator Type M24X1 Male Threaded |
|
Flow Rate 7.5 - 9 Lt / Min (3 Bar) |
|
Operation Type Ceramic Disc Cartridge Ø35 mm Without Leg |
|
Installation Connection Type Built in Wall Recessed |
|
Body Raw Material Brass |
|
Dimension Of Wall Rosette 160 mm x 120 mm x 7.5 mm |
|
Number Of Control Handle Single |
|
Material Of Control Handle Metal |
|
Max. Performance Temperature 80°C |
|
Suggested Performance Temperature 60°C |
|
Max. Performance Pressure 10 Bar |
|
Suggested Performance Pressure 3 Bar |
|
Spout Length 140 mm |
|
Assembly Distance Of Built in Spout - Ground 550 mm - 650 mm |
|
Shower Diverter On/Off System Ø22 Diverter Ceramic Cartridge |
|
Suggested Assembly Distance Of Built in Body - Ground 1100 mm |
|
Suggested From Ground To Wall Oulet Height For Overhead Shower 2100 mm - 2200 mm |
